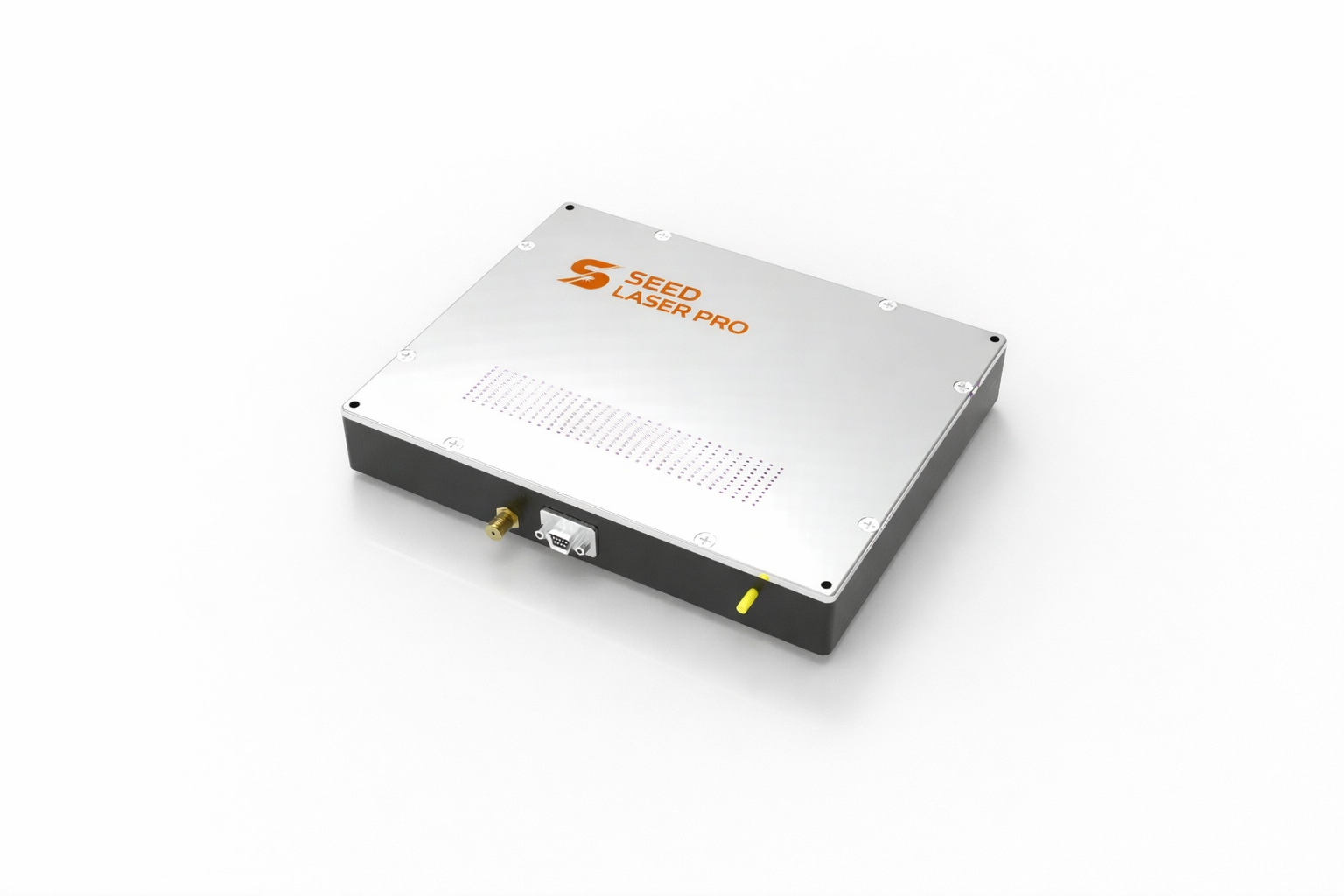

High-Sensitivity Magnetic Detection Laser
High-Sensitivity Magnetic Detection Laser

High-Sensitivity Magnetic Detection Laser

Designed specifically for precision magnetic detection, this laser operates at a wavelength of 1083 nm and employs advanced frequency-stabilization technology to ensure highly stable laser frequency, meeting the requirements for high-precision measurements.

It is suitable for applications such as quantum sensing, geomagnetic detection, and scientific research experiments, offering reliable performance and excellent stability. Its compact design allows for easy integration, providing a stable light source for high-end magnetic measurement applications and supporting accurate data acquisition and analysis.

Product Features

  • High Frequency Stability

  • Low Noise

  • High Environmental Adaptability

  • Compact Structure

  • Stable Performance

Typical Applications

  • Quantum Sensing

  • Geomagnetic Detection

Category:
Inquiry Now
Technical Parameter Unit Specification
Min Typical Max
Central Wavelength nm 1083.2
Laser Mode / Single Longitudinal Mode, Continuous Wave
Output Power mW 100
Linewidth kHz <50
Optical Signal-to-Noise Ratio dB >50
Output Power Stability (P-P) % ≤0.5
Wavelength Thermal Tuning Range nm 0.2
Polarization Extinction Ratio dB 23
Operating Voltage VDC 5
Operating Temperature ℃ -20 50
Storage Temperature ℃ -40 80
Output Fiber Type / PM980
Output Fiber Length m 0.6
Output Fiber Connector / FC/APC
Dimensions mm 205 (L) × 150 (W) × 28 (H)

Designed specifically for precision magnetic detection, this laser operates at a wavelength of 1083 nm and employs advanced frequency-stabilization technology to ensure highly stable laser frequency, meeting the requirements for high-precision measurements.

It is suitable for applications such as quantum sensing, geomagnetic detection, and scientific research experiments, offering reliable performance and excellent stability. Its compact design allows for easy integration, providing a stable light source for high-end magnetic measurement applications and supporting accurate data acquisition and analysis.
